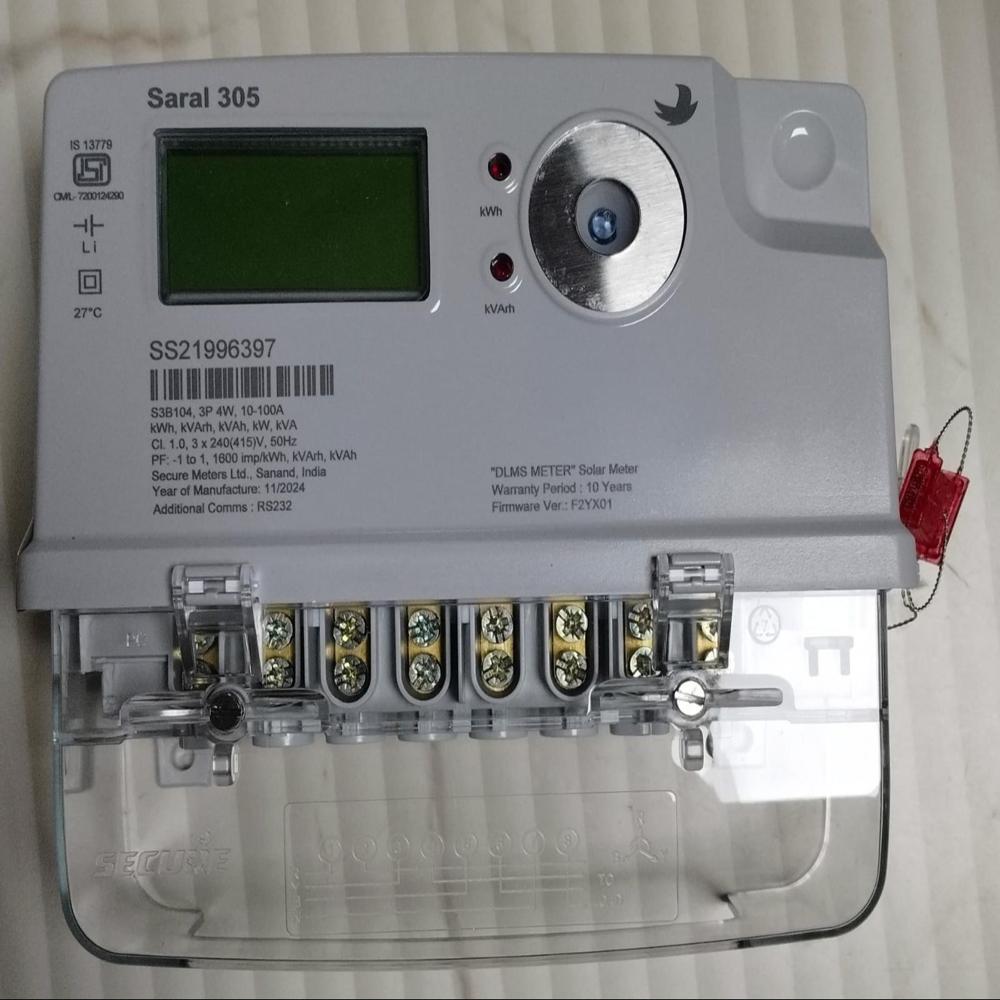

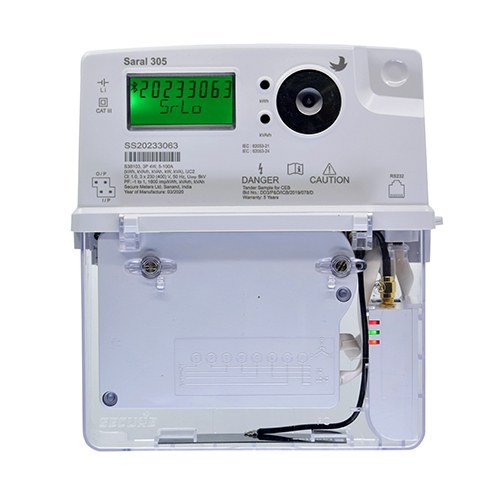

Secure 3PH Solar & Net Meter Combo

Get a Price/Quote

MOQ : 10 Units

Secure 3PH Solar & Net Meter Combo Specification

Feature	Description
Power Rating	Typically 10kW to 18kW+ depending on load.
Voltage	Three-phase AC output: 415V / 3phase / 50Hz (standard in India).
Grid Synchronization	Inverter synchronizes frequency, voltage, and phase with the grid.
Anti-islanding Protection	Automatically shuts down during grid failure for safety.
Earthing & Lightning Protection	Copper-bonded rods, surge arresters, proper grounding.
Monitoring	Real-time monitoring of power generation, consumption, and faults.

A 3phase net meter records import and export of electricity for commercial/industrial customers with 3-phase supply.

Specification	Typical Value / Requirement
Type	Digital, 3phase, 4wire or 3wire (depending on system)
Rated Voltage	415V AC (line-to-line), 240V AC (line-to-neutral)
Rated Current	10A, 20A, 30A, or higher depending on load
Frequency	50Hz 5%
Accuracy Class	Class 1 or 1.0% for commercial billing
Energy Measurement	Bi-directional (Import & Export)
Communication	RS485 / Modbus / DLMS optional for remote monitoring
Approval	CEA / CERC / State DISCOM certified
Display	LCD / LED with cumulative energy readings for import/export
Connectivity	Suitable for 3-phase inverter output to grid

Component	Specification / Notes
Solar Panels	Mono PERC / bifacial, 540700W per module depending on system size
DC Combiner Box	Fuses, lightning arrestor, surge protection for multiple strings
Inverter (3-Phase)	Grid-tied 3-phase inverter, MPPT, anti-islanding, 415V output, efficiency > 98%
AC Distribution Box (ACDB)	MCBs, RCCBs, surge protectors
Earthing Kit	14mm copper-bonded rod, clamps, copper cable, chemical backfill if required
Net Meter	CEA/DISCOM approved, bi-directional, 3-phase 415V
Monitoring System	Optional remote monitoring via inverter/RS485 or WiFi

Mounting Panels: Ensure proper tilt & spacing for maximum yield.
Earthing: Each structure and inverter properly grounded; multiple rods if resistance >1.
Overcurrent Protection: MCBs for each string and AC output.
Lightning & Surge Protection: SPD type 2 for DC and AC side.
Net Meter Application: Apply with local DISCOM for net-metering; follow meter standards.
Periodic Maintenance: Inspect panels, cables, connections, and net meter readings.
