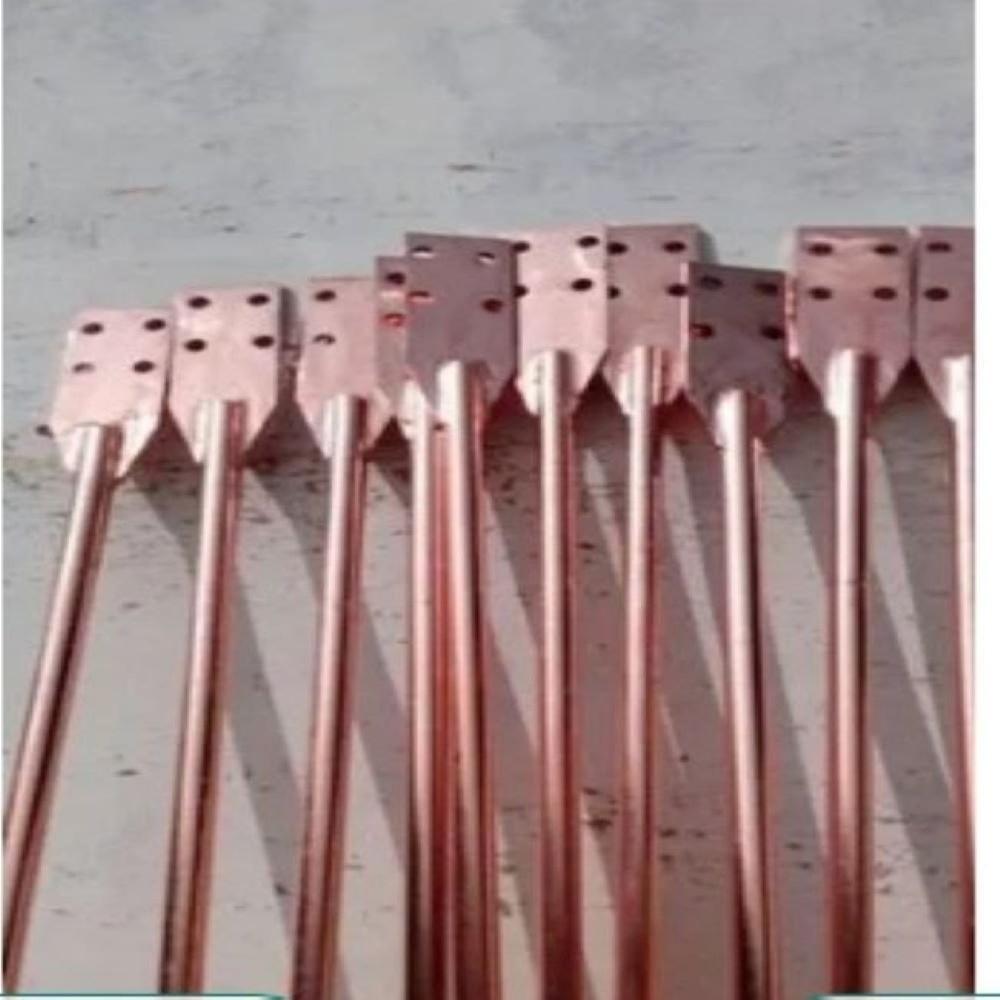

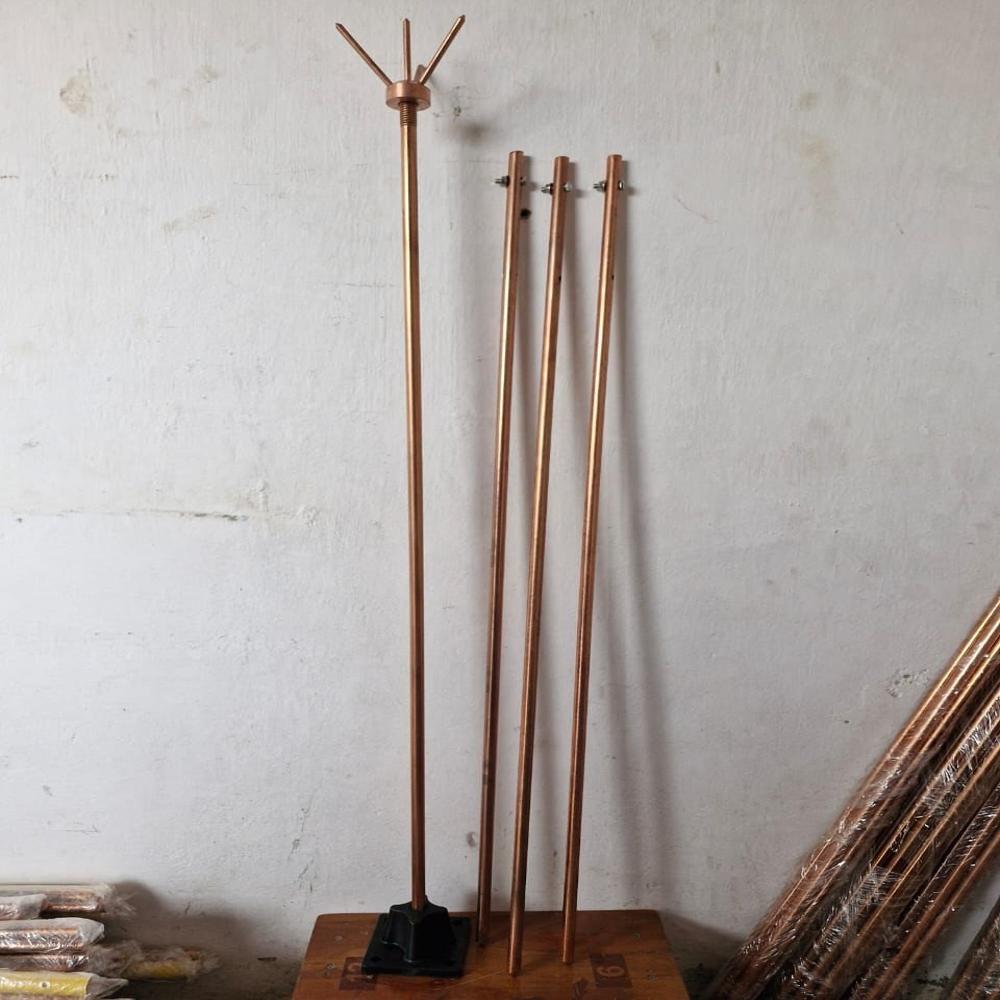

Solar Earthing Kit 14mm 1 Meter

About Solar Earthing Kit 14mm 1 Meter

2. Components of a Complete Earthing Kit

3. Key Features

• Low Earth Resistance: Typically 1 if properly installed in suitable soil; ensures quick fault current dissipation.

• Corrosion Resistance: Copper coating prevents rusting of steel rod; life span 2025 years or more.

• Mechanical Strength: Steel core provides structural strength; can withstand driving into rocky soils.

• Compatibility: Can be used for solar panel structures, inverters, ACDB/DCDB panels, lightning protection.

• Easy Installation: Standard clamps and rods allow connection without welding.

4. Installation Notes

1. Site Selection:

   • Moist soil preferred (lower resistivity).

   • Avoid sandy or rocky areas if possible; use multiple rods if required.

2. Depth & Driving:

   • Rod must be fully driven vertically into the ground (or at 45 if vertical not possible).

   • For rocky soil, pre-drill or use a hammer drill for pilot holes.

3. Connections:

   • Clean rod surface before clamping copper cable.

   • Tighten clamps properly; ensure no loose contact.

4. Resistance Testing:

   • Use an Earth tester (megger) to confirm resistance 1.

   • If higher, add supplementary rods or chemical soil treatment.

5. Maintenance:

   • Periodically inspect clamps and connections for corrosion.

   • Ensure soil around the rod remains moist if possible (for dry climates).

5. Standards / Compliance

• IS 3043: Code of Practice for Earthing (India)

• IEC 62561: Lightning protection system requirements (for solar & outdoor installations)

• IS 2629: Copper-bonded steel rods
