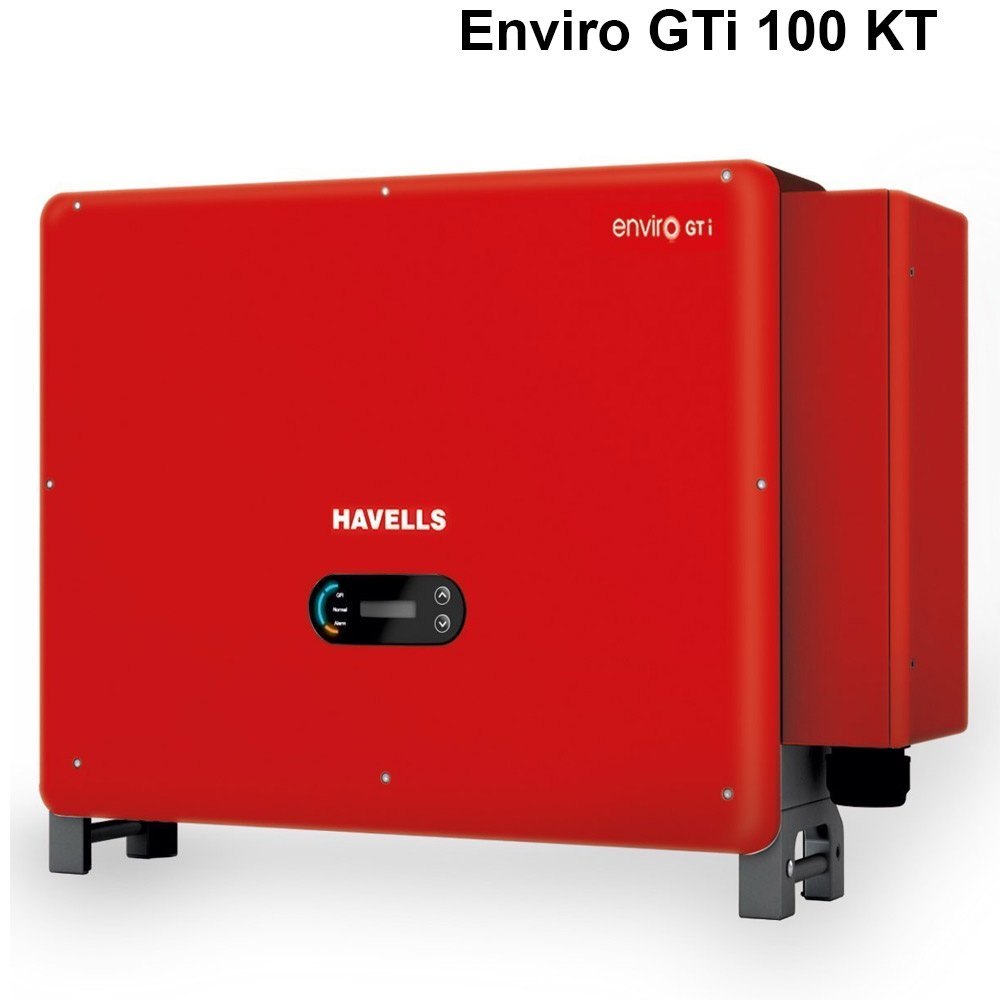

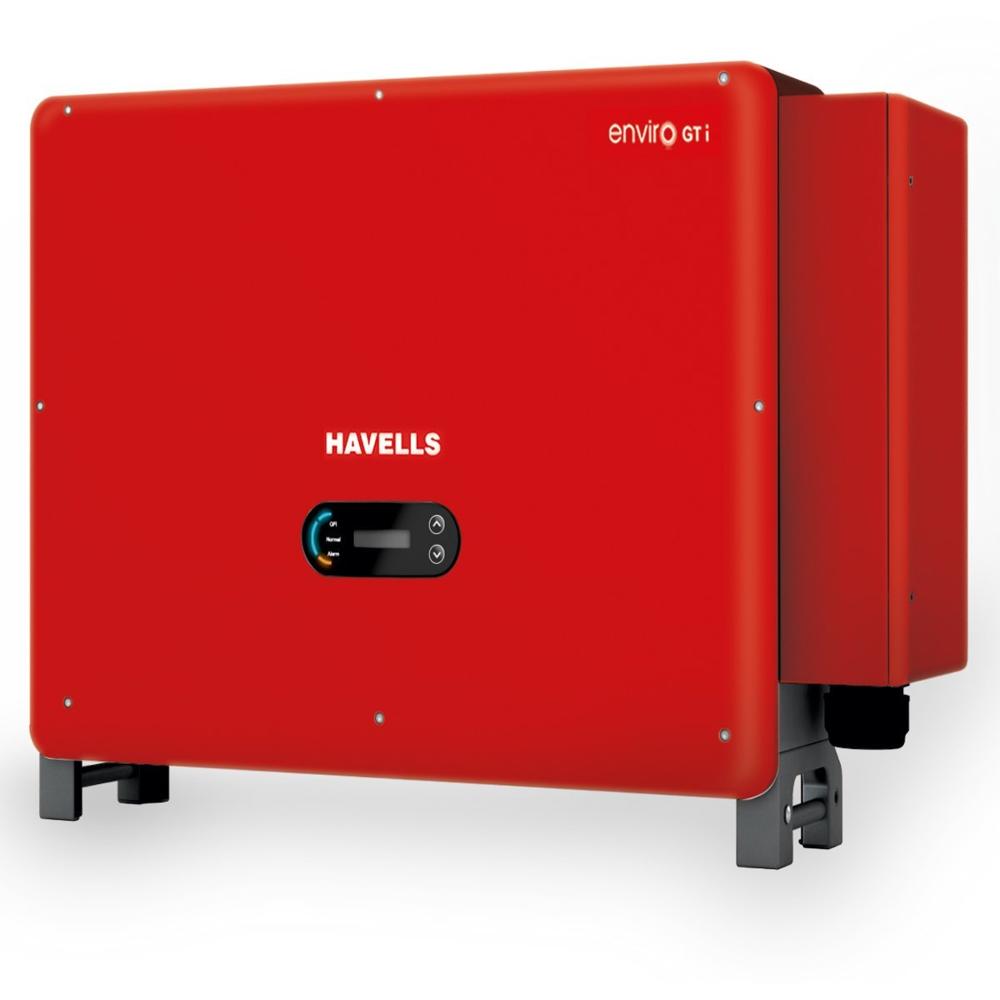

Havells Enviro GTI 100KT-NG On Grid Inverter

About Havells Enviro GTI 100KT-NG On Grid Inverter

Key Technical Specifications

Model: Enviro GTi 100 KT (100 kW)
Power rating: 100 kW rated output.
Max DC input voltage: ~ 1100 V.
MPPT (Maximum Power Point Tracking):

• MPPT operating voltage range: ~ 500-850 V.

• Number of MPPT trackers: 10 independent MPPT inputs.
  Rated input (DC): ~625 V rated.
  Output (AC):

• Grid voltage range: ~310-480 V AC for three-phase.

• Maximum AC current: ~168 A.
  Efficiency:

• Maximum efficiency ~98.7%.

• European weighted efficiency ~98.3%.
  General / environmental:

• Operating ambient temperature: 25 C to +60 C.

• Degree of protection: IP65 (suitable for outdoor installation).

• Weight: ~90 kg.

• Dimensions: ~995 693 368 mm.

• Protection & features:

• Transformerless topology.

• Built-in DC switch, anti-islanding, ground-fault monitoring, optional anti-PID, optional zero-export.

• Data logging/storage: built-in 25-year data storage capability. Remote monitoring (WiFi/GPRS/RS485) optional.
  Warranty: Typically 10 years for product
